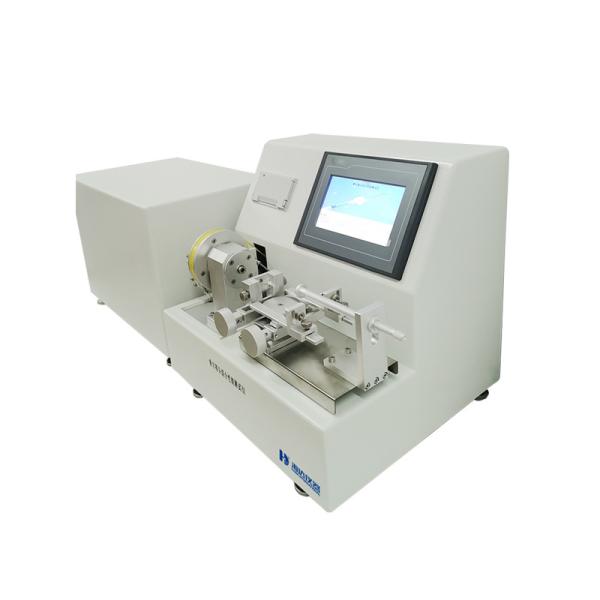

High Precision Luer Taper Comprehensive Performance Tester

Name: High Precision Luer Taper Comprehensive Performance Tester
Brand: Haida
Price: 1 USD

Wholesale High Precision Luer Taper Comprehensive Performance Tester from china suppliers

Brand Name : Haida

Model Number : 8035-HD

Certification : CE,,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Axial force : 0N~80N(error not greater than ± 2%)

Internal water pressure : 0kPa~400kPa(Adjustable) with an error of no more than + 0.5%

Separation force : 10N and 70N (The error less than 2%)

Holding time : 1 .60S(not greater than 0.5s)

Torque : 0.010N.m ~ 0.500N.m

Nominal capacity : 1mL~60mL(adjutable)

Dimension : 440*350*384mm

Power supply : AC220/50Hz(Can be customized)

Contact Now

Luer Taper Comprehensive Performance Tester

Description:

Luer Taper Comprehensive Performance Tester is a high precision device specially designed to evaluate and test the performance of Luer fittings with a variety of test functions including but not limited to leakage test, connection strength test, tightening torque test, etc. which plays a vital role in the research and development and manufacturing of medical devices.

Test Standard:

GB/T1962-2015, 1S080369-20, YY/T0916.20-2019
High Precision Luer Taper Comprehensive Performance Tester

Technical Parameters

Model	8035-HD
Test Standard	GB/T1962-2015, 1S080369-20, YY/T0916.20-2019
Test item	Pressure attenuation leakage,
	Positive pressure liquid droplet drop leakage,
	Negative pressure air leakage
	Stress cracking
	Anti axial load separation
	Anti torque separation
	Anti overload (sliding wire) performance
Axial force	0N~80N(error not greater than ± 2%)
Internal water pressure	0kPa~400kPa(Adjustable) with an error of no more than + 0.5%
Separation force	10N and 70N (The error less than 2%)
Holding time	1 .60S(not greater than 0.5s)
Torque	0.010N.m ~ 0.500N.m
Negative pressure	-10Kpa ~ -94Kpa (adjustable), error not greater than ± 1%
Negative pressure leakage rate Resolution	-0.0001Pa.m3/s
Positive pressure leakage rate Resolution	0.0001Pa.m3/s
Nominal capacity	1mL~60mL(adjutable)
1mL~60mL(adjutable)	20kg
Power	AC 220V 50Hz, 300W
Dimension	440350384mm
Partial list	1 Machine *1
	2 One roll of printing paper,
	3 One set of fixtures (customizable)
	4. One set of weights
	5. Operating instructions,
	7. Equipped with positive and negative pressure air sources

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

High Precision Luer Taper Comprehensive Performance Tester

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
