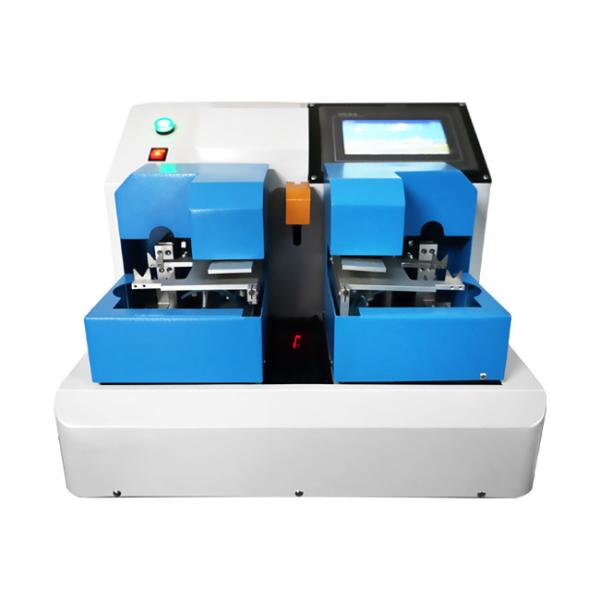

Digital Paperboard Four Point Bending Stiffness Tester ISO 5628 Ompressed Air 6 Kg/Cm2

Product Categories

Hai Da Labtester

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : HD

Model Number : HD-A544

Certification : CE:ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiation

Payment Terms : D/P, T/T, D/A, L/C, Western Union, MoneyGram

Delivery Time : 18 days after order

Packaging Details : stronger wood package

Maximum sample width : 100 mm

Set of précised control weight provided : 20g x 4 ea / 50g x 4 ea / 100g x 4 ea / 300g x 2 ea

Voltage : 110/220V AC, 250W

Compressed air : 6 kg/cm2

Contact Now

Digital Paperboard Four Point Bending Stiffness ISTA Packaging Testing ISO 5628

Advantages:

1. Full automated testing sequence;

2. Pneumatic clamping effectively eliminates any problems with twisted and curled test series;

3. Recommended settings for different flute types are pre-programmed;

4. Touch screen for easily operation;

5. Tabular or graphical presentation of result.

Applicable Standards	DIN 53 121, ISO 5628, SCAN P65, TAPPI T820, TAPPI T836
Statistics	Mean Value, Standard Deviation, Coefficient of variation, max and min values of the series, MD/CD ratio, Geometrical mean of MD and CD
Test piece	The sample size depends on board type, normally 50–100 mm (2–4 in) wide and bending length at least 120 mm (4.7 in) longer than chosen bending length. Maximum thickness is 16 mm (0.6 in)
Fixture	Pneumatic clamping effectively eliminates any problems with twisted and curled test pieces
Control Method	PLC control
Result Output	USB Flash Drive – Print Out the Image File Tabular or graphical presentation of result
Connection	USB interface (Optional)
Instrument	1. Bending length :50, 100, 150, 200 or 300 mm (2, 4, 6, 8 or 12 in) 2. Dear Weights:20 -1020 g(0.044-2.25lb )
Measurement	0.5–500 Nm (4.5–2770 lbf × in)
Measurement Tools	Laser Displacement Detector P.S non contact device to measure the deflection of the paper board, this can eliminate any un-expected loading onto the paper board
